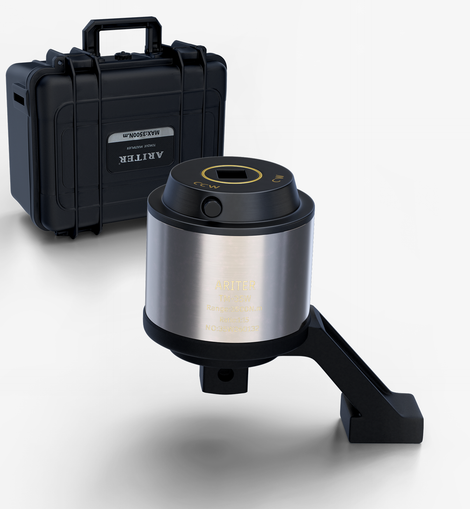

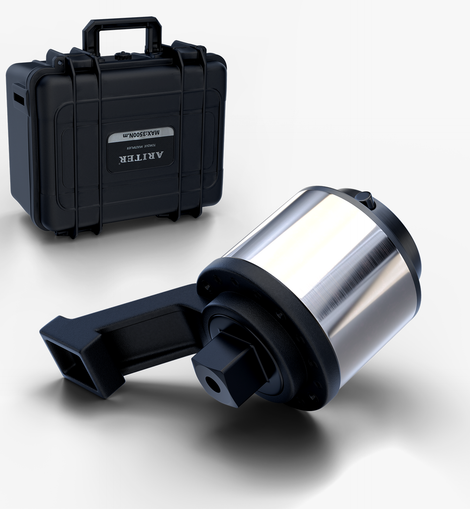

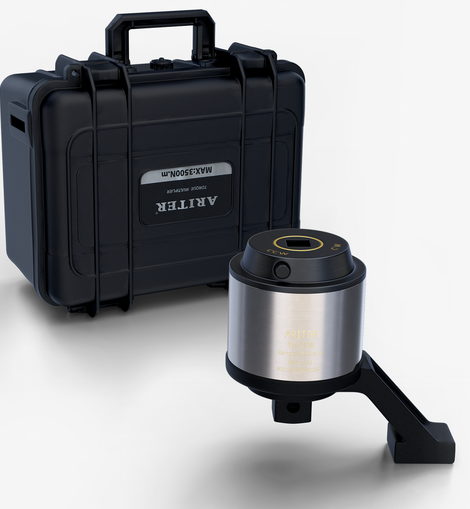

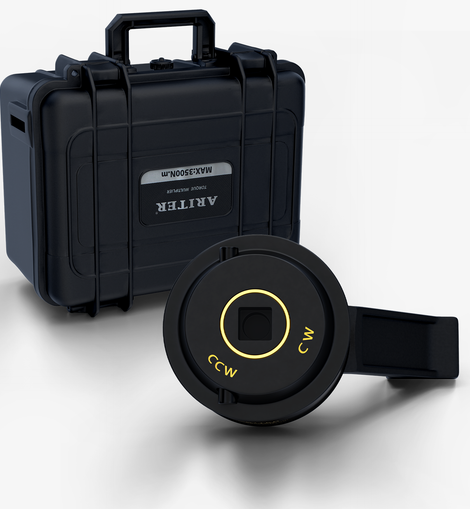

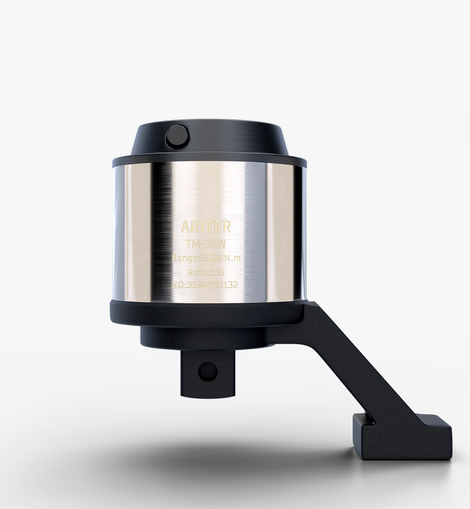

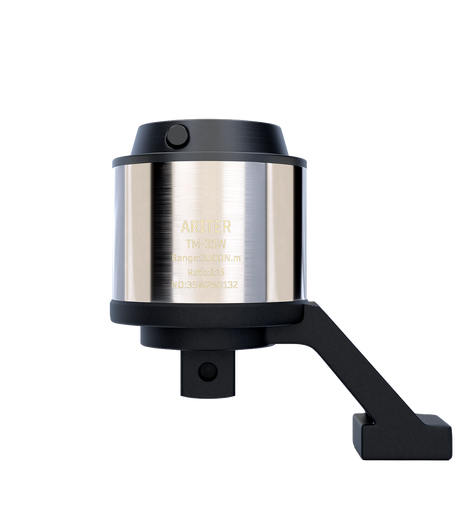

ARITER 15:1 Torque Multiplier 3500 Nm 1/2" to 1" Drive Industrial Applications
1. Achieves 15:1 torque multiplication – Converts 1/2" drive input to 1" drive output, reducing operator effort while delivering up to 3500 N·m of precise fastening torque.
2. Heavy-duty planetary gear system – Built for continuous industrial use, withstands high loads in wind turbine assembly, mining equipment, heavy truck wheel nuts, and flange bolting.
3. ±4% accuracy with manual operation – Eliminates the need for pneumatic or hydraulic power; ideal for field maintenance, pipeline construction, and steel structure erection where reliable torque control is critical.
4. Reaction bar design for safe single-person operation – No additional holding tool required; improves workplace safety and bolting efficiency in confined spaces or elevated positions.
5. Durable alloy steel construction with anti-corrosion coating – Withstands harsh job site conditions; backed by ARITER’s industrial quality assurance for long service life and repeatable performance.
| model | bolt | nut | input size | output size | Weight (KG) | maximum | Torque ratio | Transmission ratio | Maximum recommendation |
| diameter | opposite side | Z-type/P-type | torque | Z-type/P-type | Input torque | ||||
| -15 | M20-30 | S30-46 | 1/2＂ | 1＂ | 2.1 / 2.4 | 1500 | 4.5 / 5 | 5.5 | 220 / 200 |
| -20 | M22-35 | S32-55 | 1/2＂ | 1＂ | 3.15 / 3.5 | 2000 | 12 / 13.3 | 16 | 160 / 150 |
| -35 | M30-45 | S46-70 | 1/2＂ | 1＂ | 4.9 / 5.0 | 3500 | 15 / 16 | 20.25 | 230 / 210 |
| -55 | M38-52 | S55-80 | 1/2＂ | 1 1/2＂ | 8.1 / 8.7 | 5500 | 18.5 / 21.5 | 25.4 | 290 / 250 |
| -75 | M42-60 | S65-90 | 1/2＂ | 1 1/2＂ | 10.6 / 11.7 | 7500 | 20 / 24 | 29.33 | 370 / 310 |
| -100 | M52-72 | S80-105 | 1/2＂ | 1 1/2＂ | 14 / 15.2 | 10000 | 28.5 / 32 | 37.71 | 370 / 310 |
| -150 | M60-85 | S80-120 | 1/2＂ | 2 1/2＂ | 24.1 | 15000 | 1:50 | 70.19 | 300 |
| -200 | M72-100 | S105-145 | 1/2＂ | 2 1/2＂ | 27.8 | 20000 | 1:72 | 101.62 | 270 |
| Note | OEM requires a minimum of 100 units, customizable colors, LOGOO can be individually designed for appearance, structure, and functionality. A minimum of 1000 units is required | ||||||||
